集装箱真空绝热板的用途和特点：

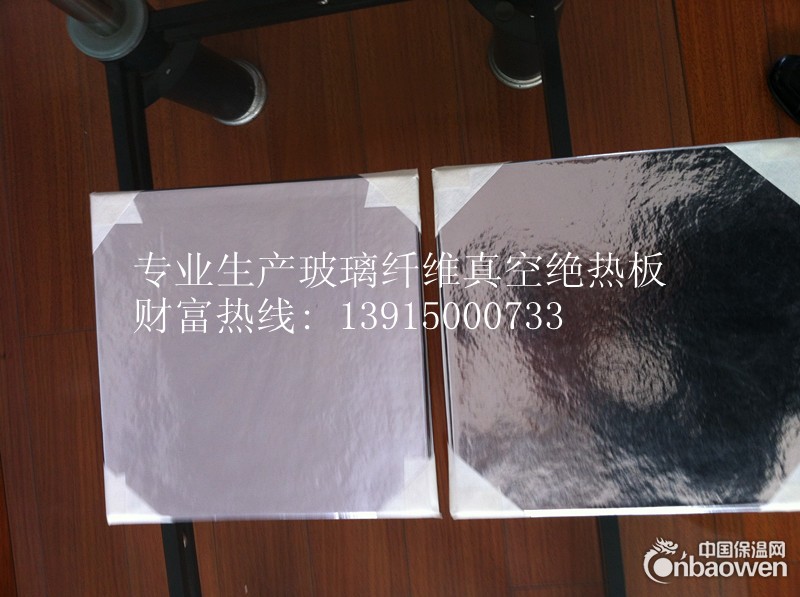

真空绝热板
VACUUM INSULATION PANEL
简介INTRODUCTION:
真空绝热板（VIP板）是英文Vacuum Insulation Panel的简称，是真空保温材料中的一种，是由填充芯材与真空保护表层复合而成，它有效地避免空气对流引起的热传递，因此导热系数可大幅度降低，小于0.003w/m.k，并且不含有任何ODS材料，具有环保和高效节能的特性，是目前世界上最先进的高效保温材料。
Vacuum Insulation Panel is a kind of vacuum insulation material and compounded of core material and vacuum surface layer, which effectively prevent air convection caused by heat transfer, thermal coefficient can be significantly reduced, less than 0.003w/m.k, and do not contain any ODS materials, it is the most advanced and efficient insulation materials, has the features of environmentally friendly and energy efficient features.
产品特点FEATURES:
极低的导热系数 Very low thermal conductivity
保温层厚度薄、体积小、重量轻 Thin, small size, light weight in insulation
温度相同时，可大幅度节能 Saving substantial energy at same temperature
为设计工程师提供多种灵活选择 Provide a variety of flexible options for engineers
产品应用APPLICATIONS:
真空绝热板主要用于保温绝热，如家用冰箱内胆保温绝热层、游艇冰箱、迷你冰箱、车载冰箱、深冷冰柜、电热水器、自动贩卖机、冷链运输箱、冷藏集装箱、建筑墙体保温和LNG储运等。
Vacuum Insulation Panels mainly used for thermal insulation products, such as household refrigerators, yacht refrigerator, mini refrigerator, car refrigerator, cryogenic freezers, water heaters, vending machines, freezers, refrigerated containers, building wall insulation and LNG storage, etc.
技术指标TECHNICAL DATA:
代码 Code |
使用温度 Work Temperature (℃) |
开孔率 Open Cell Rate (%) |
孔径 Cell Diameter (μm) |
整体密度 Overall Density (kg/m3) |
导热系数 Thermal Conductivity (W.(m.k)-1) |
压缩强度 Compress Strength (Mpa) |
板材厚度 Thickness (mm) |
||
|
VIP |
-100~100 |
≥95 |
150~200 |
240~300 |
≤0.003 |
0.14~0.25 |
8~30 |
||
注：1.特殊规格产品可以根据客户要求定制; 2.以上数据仅供参考
Mark: 1. Special products can be made on customers’ requirements.
2. Reference data only, not for technical specifications.
包装PACKING:
真空绝热板使用铝箔包裹，裁剪一定尺寸后放入纸箱中。
Vacuum Insulation Panels wrapped with aluminum foil, after cut to certain sizes, then packed with cardboard box.
贮存STORAGE:
产品应置于阴凉、干燥处，在温度10-35°，湿度35-65%环境下储存最佳。若不用，请勿打开包装，以免受潮影响适用。
The product should be stored in a dry and cool place. Best conditions are at temperature from 10 to 35℃and humidity between 35 and 65%. Unless for usage, the package must be keep intact in order to prevent the damage.
