祥雨绝热保温材料陶瓷纤维板技术参数，陶瓷纤维板理化标准：
陶瓷纤维板，陶瓷纤维防火板，陶瓷纤维挡火板，陶瓷纤维磨光板。

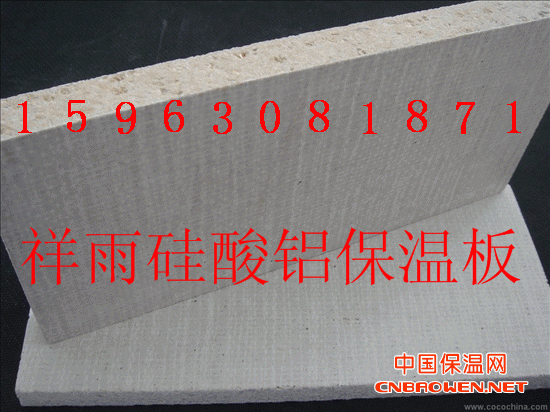

陶瓷纤维板，是我厂提供的新型绝热保温材料
一、产品说明:
陶瓷纤维板采用散棉加无机粘合剂用湿法真空吸滤加压成形,并按不同型号经过高温锻烧处
理,该产品同时具备低容重高强度的优良特性,,是一种多用途产品，可应用于炉衬热面抗火焰和
高温气流直接冲击。
二、特点:
高温稳定
低导热率
低热容
抗热震
抗侵蚀
易加工和切割性能
精准的厚度与尺寸
良好的抗火焰及气流冲刷
安装使用方便
三、产品应用:
可应用于同时要求坚韧，自承重及隔热的领域，它具有良好的抗机械破坏性能。
领域包括：推板窑、钢包炉、钟罩窑、隧道窑、辊道窑、熔铝炉、热处理炉等绝热内
衬和背衬；高温挡火板;窑车隔热；各种高温工业窑炉隔热。
四、理化数据
型 号 STD1000 GP-1260 HA-1420 HG-1600 分类温度 ( o C) 1000 1260 1420 1600 容 重 (kg/m 3 ) 160-250 160-250 160-250 160-250 重烧线收缩 (%) < 1.4(800oC < 1.3(1000oC < 1.5(1150oC < 2(1500oC 化 Al 2 O 3 37 42 30 65 SiO 2 +Al 2 O 3 >96 99 88 >99 Fe 2 O 3 <1.0 0.2 0.2 - ZrO 2 - - 8 - 产品规格（mm）： 标准 600×400×20～50 900*600*20-50
× 24hr)
× 24hr)
× 24hr)
× 24hr)
学
组
成
%
Aluminosilicate Fiberboard increase the use of casual cotton inorganic adhesive wet filter vacuum pressure forming, and different models through high-temperature calcination Department
The rationale for the product at the same time with high-strength low-density fine features, is a multi-purpose products, lining can be applied to the flame and heat resistant surface
A direct impact on high-temperature airflow.
Second, characteristics:
High temperature stability
Low thermal conductivity
Low heat capacity
Thermal shock resistance
Anti-erosion
Easy processing and cutting performance
Precise thickness and size
Good anti-flame and air scour
The installation of easy-to-use
Third, product applications:
Requirements can be applied at the same time tough, since the load-bearing areas and thermal insulation, it has a good performance against mechanical damage.
Areas include: push board kiln, ladle furnace, Bell kiln, tunnel kiln, roller kiln, aluminum melting furnace, heat treatment furnace, such as insulation in
Lining and backing; high-temperature thermal block plate; kiln car insulation; a variety of high temperature industrial furnace insulation.
Fourth, physical and chemical data
Model
STD-1000
HP-1260
HA-1420
HG-1600
Classification temperature (o C)
1000
1260
1420
1600
Bulk density (kg / m 3)
160-250
160-250
160-250
160-250
Re-burned linear shrinkage (%)
<1.4 (800oC
× 24hr)
<1.3 (1000oC
× 24hr)
<1.5 (1150oC
× 24hr)
<2 (1500oC
× 24hr)
Of
Science
Group
Into
%
Al 2 O 3
37
42
30
65
SiO 2 + Al 2 O 3
> 96
99
88
> 99
Fe 2 O 3
<1.0
0.2
0.2
--
ZrO 2
--
--
8
--
Product specifications (mm): the standard 600 × 400 × 20 ~ 50 .900 * 600 × 20 ~ 50
