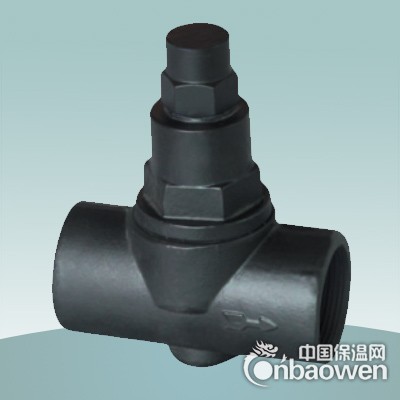

双金属温调式蒸汽疏水阀 Bimetallic trap of temperature adjustment
产品介绍：TB型双金属片蒸汽疏水阀适用于散热器、换热器、夹套锅、加热盘管、烘干机、消毒器、层压机等。
结构特点：1、排放温度可在闲调解，安装姿势自由，内件全不锈钢。
2、利用高温凝结水行程水封式，有效减少蒸汽泄漏。
3、动作灵敏，抗水击，无噪音，排空性能优良。
4、结构简单，容易维修保养，适用高温蒸汽管线。
Inroduction：TB bimetallic steam trap is suitable for radiator，heat exchanger，drier，heating pipelines and sterilizer.
Structure:1.The temperature for allocation can be adjusted online and installation can be conducted in free way.All the parts inside are of stainless steel.
2.The condensed water of high temperature will form water sealing to effectively reduce the steam leakage.
3.The action is agile and excellent abilities to resist to resist water beating,and to discharge water;not produce noise.
4.Simple structure to facilitate to facilitate maintenance,being appropriate for steam pipelines of high temperature.
主要零件材料和性能参数
壳体压力等级 Shell pressure rank |
1.6、2.5mpa |
最大工作压差 |
2.5mpa |
允许背压率 |
≥75% |
|
负荷泄露率 |
0% |
适用过热蒸汽 |
优秀 |
节能效果 |
优秀 |
|
使用介质 |
蒸汽、凝结水 |
排放方式 |
连续方式 |
抗水击 |
优秀 |
技术参数表，Technological parameter date
Model 产品型号 |
Nominal diameter |
Connection |
Pressure raring |
Max allowable（℃） |
Adjustment Rating（℃） |
External diamensions（mm） |
Re.weight |
|||
|
L |
H1 |
H2 |
W |
|||||||
|
TB6 |
15~20 |
Thread 螺纹 |
0.01~1.6 |
220 |
50~180 |
90 |
108 |
25 |
63 |
1.8 |
|
TB6F |
15~20 |
Flange 法兰 |
0.01~1.6 |
220 |
50~180 |
150 |
108 |
25 |
63 |
3.2 |
|
TB6W |
15~20 |
Socket weld |
0.01~1.6 |
220 |
50~180 |
90 |
108 |
25 |
63 |
1.8 |
|
TB11 |
15~20 |
Thread 螺纹 |
0.01~1.6 |
220 |
50~190 |
90 |
108 |
25 |
63 |
1.8 |
|
TB11F |
15~20 |
Flange 法兰 |
0.01~1.6 |
220 |
50~190 |
150 |
108 |
25 |
63 |
3.2 |
|
TB11W |
15~20 |
Socket weld |
0.01~1.6 |
220 |
50~190 |
90 |
108 |
25 |
63 |
1.8 |
|
TB3 |
15~20 |
Thread 螺纹 |
0.01~1.6 |
350 |
50~190 |
80 |
90 |
23 |
56 |
1.5 |
|
TB3F |
15~20 |
Flange 法兰 |
0.01~1.6 |
350 |
50~190 |
150 |
90 |
23 |
56 |
3.3 |
|
TB3W |
15~20 |
Socket weld |
0.01~1.6 |
350 |
50~190 |
80 |
90 |
23 |
56 |
1.5 |
|
TB5 |
15~20 |
Thread 螺纹 |
0.01~2.1 |
350 |
50~200 |
80 |
90 |
23 |
56 |
1.5 |
|
TB5F |
15~20 |
Flange 法兰 |
0.01~2.1 |
350 |
50~200 |
150 |
90 |
23 |
56 |
3.3 |
|
TB5W |
15~20 |
Socket weld |
0.01~2.1 |
350 |
50~200 |
80 |
90 |
23 |
56 |
1.5 |
