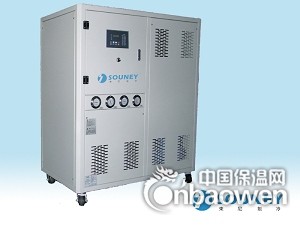

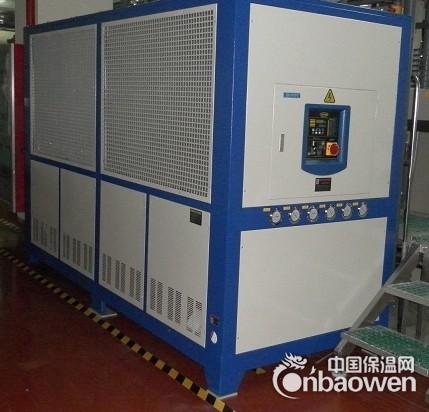

产品图片：
产品分类：工业冷水机
产品规格：SICA01-SICA60
产品描述：
SCA系列工业冷水机广泛用于塑胶、电子制造、电镀、医药化工、超声波冷却。印刷等工业生产，能精确控制现代工业机械化生产所要求的温度，大大提高了生产效率及产品质量。
技术参数:
|
型 号 Model |
SICA 01 |
SICA 02 |
SICA- 3 |
SICA- 5 |
SICA- 6 |
SICA- 8 |
SICA- 10 |
|||||
|
制冷量 Cooling capacity |
kW |
2.7 |
5.2 |
9.1 |
15.0 |
18.0 |
21.5 |
29.5 |
||||
|
103 kcal/h |
2.3 |
4.5 |
7.8 |
12.9 |
15.5 |
18.5 |
25.4 |
|||||
|
电源 Power supply |
V/ph/Hz |
220/1/50 |
380/3/50 |
|||||||||
|
输入功率Input power |
kW |
1.2 |
2.0 |
2.8 |
4.5 |
5.2 |
7.2 |
8.8 |
||||
|
压缩机类型 Compressor type |
转子式 Rotor |
涡旋式 Scroll type |
||||||||||
|
压缩机功率 Compressor Power |
kW |
0.75 |
1.5 |
2.25 |
3.75 |
4.5 |
6.0 |
7.5 |
||||
|
水泵功率Pump power |
kW |
0.37 |
0.37 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
||||
|
冷冻水流量Water flow rate |
m3/h |
0.46 |
0.89 |
1.6 |
2.6 |
3.0 |
3.7 |
5.0 |
||||
|
蒸发器形式Evaporator type |
水箱式/ 不锈钢板换 Water tank type/ Stainless Steel Pate |
|||||||||||
|
水箱容积Water tank volume |
L |
20 |
40 |
55 |
60 |
90 |
120 |
200 |
||||
|
接管尺寸Pipe size |
DN |
15 |
20 |
25 |
25 |
25 |
40 |
40 |
||||
|
冷凝器 Condenser type |
翅片式Coil type |
|||||||||||
|
冷媒 Refrigerant type |
R22/R134a/R404 |
|||||||||||
|
节流方式Flow control |
毛细管 Capillary |
|||||||||||
|
保护装置Protector |
高低压、过载、防冻、延时、超温、水流保护 Pressure、0verload、Anti-freeze、Delay、Over-temperature、Water flow |
|||||||||||
|
噪音 Noise lever |
dB(A) |
55 |
56 |
58 |
62 |
64 |
65 |
66 |
||||
|
机组重量 Weight |
kg |
80 |
110 |
150 |
175 |
200 |
260 |
380 |
||||
|
外形尺寸 Dimensions |
长L |
mm |
510 |
600 |
950 |
1150 |
1150 |
1300 |
1550 |
|||
|
宽W |
mm |
510 |
560 |
560 |
600 |
600 |
750 |
750 |
||||
|
高H |
mm |
725 |
930 |
1100 |
1100 |
1100 |
1380 |
1400 |
||||
|
型 号 Model |
SICA- 12 |
SICA- 15 |
SICA- 20 |
SICA- 25 |
SICA- 30 |
SICA- 40 |
SICA- 50 |
|||
|
制冷量 Cooling Capacity |
kW |
38.5 |
44.0 |
55 |
68 |
82.0 |
120.0 |
140.0 |
||
|
103 kcal/h |
32.7 |
38.0 |
50.4 |
59.4 |
74.1 |
100.0 |
120.0 |
|||
|
电源 Power supply |
V/ph/Hz |
380/3/50 |
||||||||
|
输入功率 Input power |
kW |
10.7 |
14.2 |
18.1 |
22.1 |
26.2 |
35.6 |
47.5 |
||
|
压缩机类型 Compressor type |
涡旋式 Scroll type |
|||||||||
|
压缩机功率 Compressor Power |
kW |
9.37 |
11.9 |
15.5 |
18.8 |
22.5 |
30 |
37.5 |
||
|
水泵功率Pump power |
kW |
0.75 |
1.5 |
1.5 |
2.25 |
2.25 |
3.0 |
5.0 |
||
|
冷冻水流量Water flow rate |
m3/h |
6.5 |
7.6 |
10.0 |
11.8 |
14.8 |
20.0 |
24.0 |
||
|
蒸发器形式Evaporator type |
水箱式/不锈钢板换式 Water tank type/ Stainless Steel Pate |
|||||||||
|
水箱容积Water tank volume |
L |
200 |
280 |
350 |
350 |
420 |
480 |
500 |
||
|
接管尺寸Pipe size |
DN |
40 |
50 |
50 |
65 |
65 |
80 |
100 |
||
|
冷凝器 Condenser type |
翅片式Coil type |
|||||||||
|
冷媒 Refrigerant type |
R22/R134a/R404 |
|||||||||
|
充注量Refrigerant volume |
kg |
10.0 |
13.0 |
14.0 |
16.0 |
20.0 |
25 |
32 |
||
|
节流方式Flow control |
膨胀阀 Expansion valve |
|||||||||
|
保护装置Protector |
高低压、过载、防冻、延时、超温、水流保护/ Pressure、Overload、Anti-freeze、Delay、Over-temperature、Water flow |
|||||||||
|
噪音 Noise lever |
dB(A) |
62 |
65 |
66 |
68 |
68 |
68 |
68 |
||
|
机组重量 Weight |
kg |
350 |
400 |
750 |
1200 |
1300 |
1500 |
1600 |
||
|
外形尺寸 Dimensions |
长L |
mm |
1550 |
1750 |
1950 |
2050 |
2200 |
2900 |
3300 |
|
|
宽W |
mm |
750 |
980 |
1150 |
1500 |
1500 |
1680 |
1680 |
||
|
高H |
mm |
1400 |
1680 |
1750 |
1950 |
2020 |
2200 |
2200 |
||
说明Directions：
1、以上制冷量基于环境温度35℃、进水温度12℃、出水温度7℃。
The cooling capacity is based on a 35℃ ambient temperature, a 12℃ entering water temperature and a 7℃ leaving water temperature.
2、本公司保留因技术需要更改产品的权利，请关注公司网站相关公告或向相关业务人员咨询。
Design and specification are subject to change without prior notice.
3、产品是公司标准产品，本公司接受客户定制业务。
Please contact with us for special design.
