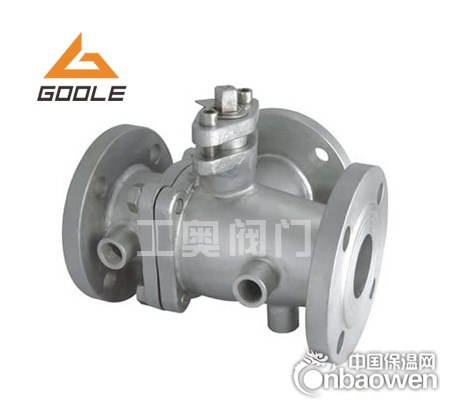

一、BQ44三通保温球阀连接尺寸表：
|
公称压力或压力级 |
主要尺寸 |
公称通径DN(mm/in) |
|||||||||||
|
15/1/2'' |
20/3/4'' |
25/1'' |
32/1/4'' |
40/1/2'' |
50/2'' |
65/2/1/2'' |
80/3'' |
100/4'' |
125/5'' |
150/6'' |
200/8'' |
||
|
PN1.06pa |
L |
150 |
150 |
180 |
200 |
220 |
240 |
260 |
280 |
320 |
380 |
440 |
500 |
|
PN2.5pa |
L1 |
75 |
75 |
90 |
100 |
110 |
120 |
130 |
140 |
160 |
190 |
220 |
275 |
|
PN4.0pa |
H |
90 |
90 |
102 |
115 |
135 |
140 |
155 |
185 |
210 |
275 |
305 |
335 |
|
CLASS150 |
W |
140 |
140 |
155 |
250 |
250 |
350 |
350 |
420 |
700 |
1000 |
1300 |
1800 |
如客户工况当中有应用到BQ44三通保温球阀，欢迎询价、订购
