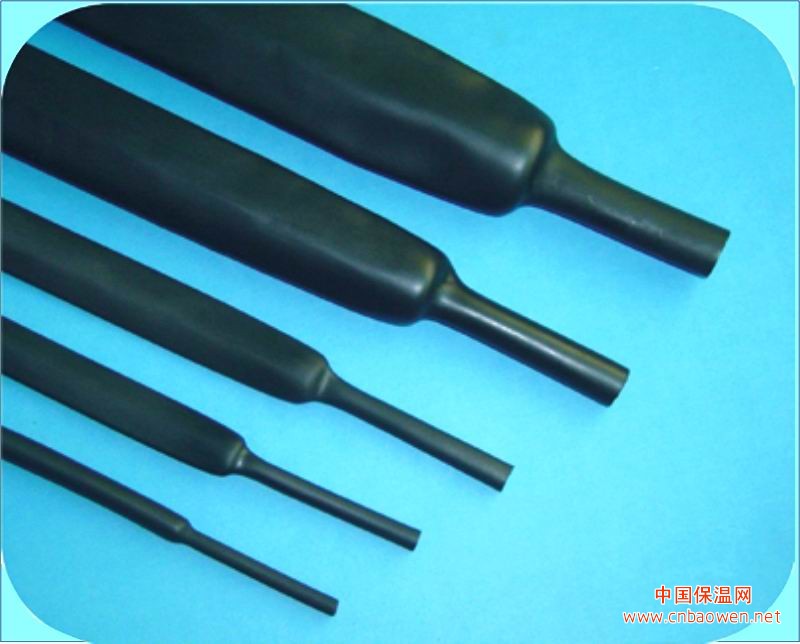

XR-H 双壁热缩套管(XR-H Dall HEAT SHRINKABLE TUBES)
描述: XR-H※ 双壁热收缩套管内层附有热熔胶的半柔性热缩管,
外层是由辐射交联聚烯烃组成,内层是专门设计的
胶性内壁;加热时内壁熔融,并随外壁收缩填充孔隙
或缝隙,冷却后,双壁管壁厚均匀,结实.
※ 阻燃级别: UL224 VW-1
※ 产品具有低温收缩、柔软、阻燃、防水防潮、耐油
耐酸等优点.
※ 产品收缩比率:2:1 3:1 4:1
用途:本产品广泛应用于电子设备的接线防水,电线分支处的密封固
定,金属管线的防腐保护,以及防止由高分子链松弛产生的松动
和脱落,如水下灯饰,汽车刹车油管,高级线束的防腐保护.
性能参数:Properties
|
性能Properties
|
特性要求(Specification Requirement)
|
|
※ 物理性能(Physical):
|
|
|
收缩温度(Shrink Temperature)
|
90-110℃
|
|
适用温度(Continuous Operating Temperature)
|
-55℃～125℃
|
|
老化后抗张强度(Tensile strength after aging)
|
10.4Mpa
|
|
老化后断裂伸长率(Elongation after aging)
|
＞200%
|
|
收缩比率(Radial Shrinking Ratio)
|
33%(3:1) or 25%(4:1)
|
|
纵向收缩(Longitudinal Shrinking Ratio)
|
＜±15%
|
|
※ 电气性能(Electrical):
|
|
|
绝缘耐压(Dielectric Voltage withstan)
|
≥2500V
|
|
体积电阻率(Volume resistivity)
|
≥10 14Ω.CM
|
|
※ 化学性能(Chemical):
|
|
|
铜腐蚀性(Corrosion )
|
不被侵蚀(NO corrosion)
|
|
耐油性(Copper stability)
|
卓越性能(Good to Excellent)
|
|
阻燃性(Flammability)
|
VW-1
|
|
规格
SIZE
|
扩张后尺寸
(Sides after spreading)
|
自由收缩后尺寸
(Sides after freedly shrink)
|
||||||||
|
最小内径
|
壁厚
|
最小内径
|
总壁厚
|
胶层厚度
|
||||||
|
Mininside diameter
|
Wall thickness
|
MAX Wall
|
Sum wall thickness
|
JC wall thickness
|
||||||
|
mm
|
INCH
|
mm
|
INCH
|
mm
|
INCH
|
mm
|
INCH
|
mm
|
INCH
|
|
|
1/8
|
3.2
|
0.125
|
0.57
|
0.016
|
1.00
|
0.039
|
1.00±0.28
|
0.039±0.010
|
0.50
|
0.020
|
|
3/16
|
4.8
|
0.187
|
0.57
|
0.016
|
1.50
|
0.059
|
1.00±0.28
|
0.039±0.010
|
0.50
|
0.020
|
|
1/4
|
6.4
|
0.250
|
0.57
|
0.016
|
2.00
|
0.079
|
1.00±0.28
|
0.039±0.010
|
0.50
|
0.020
|
|
3/8
|
9.5
|
0.375
|
0.64
|
0.016
|
3.00
|
0.118
|
1.00±0.28
|
0.055±0.010
|
0.61
|
0.024
|
|
1/2
|
12.7
|
0.500
|
0.80
|
0.016
|
4.00
|
0.157
|
1.78±0.38
|
0.070±0.010
|
0.76
|
0.030
|
|
3/4
|
19.1
|
0.750
|
0.93
|
0.020
|
6.00
|
0.236
|
2.25±0.55
|
0.088±0.020
|
0.76
|
0.030
|
|
1
|
25.4
|
1.000
|
1.00
|
0.020
|
8.00
|
0.315
|
2.54±0.55
|
0.100±0.020
|
1.02
|
0.040
|
|
1-1/4
|
30.0
|
1.200
|
1.20
|
0.025
|
10.00
|
0.394
|
2.54±0.55
|
0.100±0.020
|
1.02
|
0.040
|
