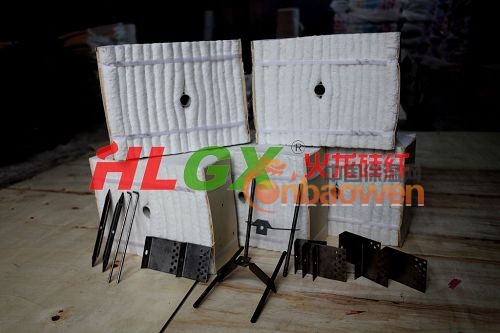

火龙HLGX®陶瓷纤维模块
产品描述：
◎火龙各种耐火陶纤模块及折叠块，是用对应材质的陶瓷纤维长纤维甩丝针刺毯，按纤维组件结构、尺寸，在专用机械上加工而成。在加工过程中，均保持一定比例的压缩量，以保证陶纤模块壁衬砌筑完毕后，由于每块陶纤模块在不同方向的膨胀，使陶纤模块之间相互挤成一个无缝隙的整体，陶纤模块均能通过各种形式的锚固件直接固定于工业窑炉炉壳钢板的锚固钉上。

产品特性：
◎根据用户加热设备结构及综合氛围的不同，可以设计方形、菱形、扇形、L型、V型多种形态，并采用多种排布方式。
◎无须预留膨胀缝。陶纤模块及折叠毯在解除捆扎后会在不同方向上相互挤紧，形成密不透风的整体。
◎有弹性的纤维毯可以抵抗机械外力作用，使窑炉设备移动加热或异地运输成为可能。
◎纤维毯的弹性可以弥补炉壳的变形，使各组合块与炉板之间不产生缝隙。
◎制品重量轻，系多孔结构，作为隔热材料蓄热明显优于传统材料，尤其为间歇式窑炉用户带来显著效益。
◎低热导性能带来显著节能效果。
◎具有抵抗任何热冲击的能力。
◎衬体无需烘干和养护，所以安装好以后便可立即投入使用。
◎锚固件系统远离组件的热面，使得金属锚固件处在相对低温环境下,提高了锚固的安全性。

产品种类：
◎1050陶纤模块HLGX-189
◎1260陶纤模块HLGX-289
◎高纯陶纤模块HLGX-389
◎高铝陶纤模块HLGX-489
◎锆铝陶纤模块HLGX-689
◎含锆陶纤模块HLGX-589

典型应用：
冶金、机械、建材、石油化工、有色金属等行业各类工业炉、加热装置炉衬。
Furnace lines of various industrial furnace and heating equipment in metallurgy, machine, construction and material, petrol-chemical and ferrous metal industry.
技术指标T:

分类温度 1260 1400
产品代码 HLGX-289 HLGX-389 HLGX-489 HLGX-689 HLGX-589
加热永久线变化(%) 1000℃×24h
≤-3 1100℃×24h
≤-3 1200℃×24h
≤-3 1200℃×24h
≤-3 1280℃×24h
≤-3
理论体积密度 (kg/m3) 180；200；220
理论导热系数·  平均200℃ 0.050-0.060
  平均400℃ 0.095-0.120
  平均600℃ 0.160-0.195
常规尺寸(mm) 300/600×300×200/300（特殊尺寸均可定做）
包装形式 编织袋或纸箱

Huolong HLGX® Ceramic Fiber Module
 Description：
A series of ceramic fiber module was processed according the fiber module structure、size by special machine on the ceramic fiber needle blanket which was corresponding material. In the course of processing, they should be maintained a certain proportional reduction, to ensure that compressed to form a integer set without joint between ceramic fiber folded blanket after ceramic fiber folded module have been built. Owing to the ceramic fiber folded module expand different. Ceramic fiber folded module could be fixed to the stud which in the steel board of industrial furnace by series of anchors.

Characteristic:
Ceramic fiber module not on used in furnace, but also brought following benefit with ended custom: ：
series of anchors made the folded module either adopted queue or butt joint which in the back of folded module.
Folded blanket will impact tight with each other in different way without gaps after release from packing.
Elastical fiber blanket can withstand mechanical force.
the elasticity of fiber blanket could make up distortion of furnace casing and with gaps between modules.
Because of the light weight, the decalescence capability is low as the insulation materials.
Low thermal conductivity can save much energy.
Excellent thermal shock resistance capability.
Can be betaken immediate as soon as being installed, for there is no need to be dried and maintained.
The Anchor system should be far away from the hot surface of the modules and kept in the lower temp.

Product Series：
1050 Ceramic Fiber Module  HLGX-189
1260 Ceramic Fiber Module  HLGX-289
High Purity Ceramic Fiber odule  HLGX-389
High Aluminum Ceramic Fiber Module  HLGX-489
Zirconium Aluminum Ceramic Fiber Module  HLGX-689
High Zirconium Ceramic Fiber Module  HLGX-589

Application：
Furnace lines of various industrial furnace and heating equipment in metallurgy, machine, construction and material, petrol-chemical and ferrous metal industry.

Technical Index:

Classification Temperature 1260 1400
Code HLGX-289 HLGX-389 HLGX-489 HLGX-689 HLGX-589
Shrinkage on Heating (%) 1000℃×24h
≤-3 1100℃×24h
≤-3 1200℃×24h
≤-3 1200℃×24h
≤-3 1280℃×24h
≤-3
Theoretical Density (kg/m3) 180；200；220

·  Average 200℃ 0.050-0.060
  Average 400℃ 0.095-0.120
  Average 600℃ 0.160-0.195
Specification (mm) 300/600×300×200/300
Package woven bag or Carton
