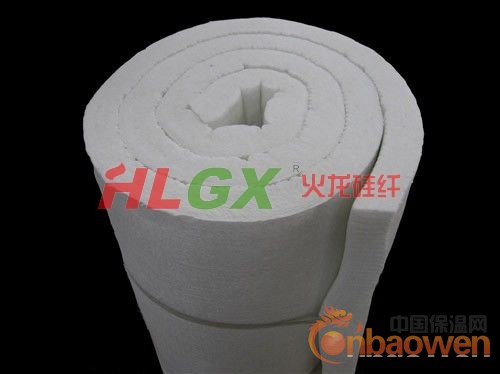

火龙HLGX®陶瓷纤维毯
产品描述：

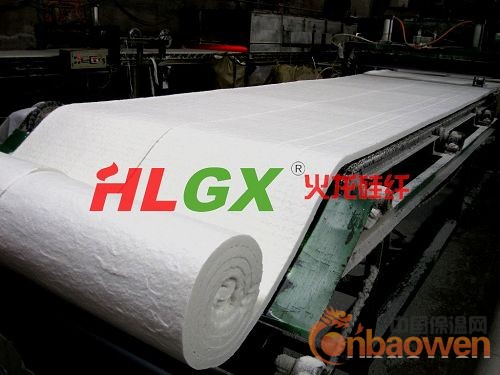

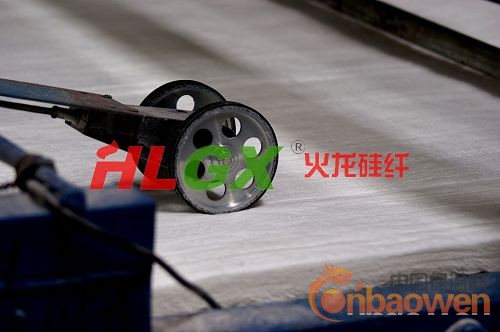

◎火龙陶瓷纤维毯，采用连续化生产，经针刺、热定型后纤维交织均匀、抗拉强度高，不含任何结合剂。
◎不同体积密度、不同厚度的针刺毯为用户提供了宽阔的选材范围，以获得最佳隔热结构和效益。
◎火龙陶瓷纤维毯具有良好的抗化学侵蚀能力（氢氟酸、磷酸和强碱Na2O,K2O除外）。
◎火龙陶瓷纤维毯的性能不受油蚀的影响，经过烘干即可恢复其热性能和物理特性。
产品种类：
◎1050陶瓷纤维甩丝毯HLGX-112
◎1260陶瓷纤维甩丝毯HLGX-212
◎高纯陶瓷纤维甩丝毯HLGX-312
◎高铝陶瓷纤维喷吹毯HLGX-422
◎锆铝陶瓷纤维甩丝毯HLGX-612
◎含锆陶瓷纤维甩丝毯HLGX-512
产品特点：
◎优良的化学稳定性
◎优良的热稳定性
◎优良的抗拉强度
◎低热容量
◎低导热率
典型应用：
◎工业窑炉壁衬、背衬材料，窑炉砌体膨胀缝、炉门、顶盖绝热密封
◎高温管道、储油罐、船舶、大型加热设备等外保温绝热材料
◎耐火纤维模块、折叠块加工材料
技术指标：
|
分类温度
|
1050
|
1260
|
1400
|
|||||
|
产品代码
|
HLGX-112
|
HLGX-212
|
HLGX-312
|
HLGX-422
|
HLGX-612
|
HLGX-512
|
||
|
加热永久线变化(%)
|
950℃×24h≤-3
|
1050℃×24h≤-3
|
1100℃×24h
≤-3
|
1200℃×24h
≤-3
|
1200×24h
≤-3
|
1280℃×24h
≤-3
|
||
|
理 论
导热系数
(W/m·k)
（128kg/m3）
|
(200℃平均)
|
0.045-0.060
|
0.052-0.070
|
|||||
|
(400℃平均)
|
0.085-0.110
|
0.095-0.120
|
||||||
|
(600℃平均)
|
0.152-0.20
|
0.164-0.210
|
||||||
|
理论体积密度(kg/m3)
|
96/128
|
128
|
96/128
|
|||||
|
产品规格(mm)
|
3600/7200/×610/1220×10/20/25/30/40/50
|
|||||||
|
抗拉强度（25mm厚）MPa
|
≥0.04
|
|||||||
|
包装
|
内塑料袋外编织袋
|
|||||||
Huolong HLGX® Ceramic Fiber Spun Blanket
Descript ion：
Huolong Ceramic Fiber Blanket was adopted continuous processing method，the fiber interweaved shape after being needled，which of excellent tensile strength. The blanket contains not any bonding agent 。
Our needled blanket has various density and thickness so that our client can have many choices, which will bring the perfect insulating frame work and profit.
Huolong Ceramic Fiber Blanket can resist the chemical species well, but not the Hydrofluoric Acid, Phosphoric Acid and Strong Base.
Huolong Ceramic Fiber Blanket have excellent capability of resisting the oil, after being dried it will repossess the thermal characteristic and the physical feature.
Product Series：
1050 Ceramic Fiber Spun Blanket HLGX-112
1260 Ceramic Fiber Spun Blanket HLGX-212
High Purity Ceramic Fiber Spun Blanket HLGX-312
High Aluminum Ceramic Fiber Blown Blanket HLGX-422
Zirconium Aluminum Ceramic Fiber Blown Blanket HLGX-612
High Zirconium Ceramic Fiber Spun Blanket HLGX-512
Characteristic：
Excellent Chemical Stability
Excellent Thermal Stability
Excellent Tensile Strength
Low Heat Storage
Low Thermal Conductivity
Application：
The material of wall lines and back lines of industrial furnace and the sealing and insulating material of expanded gaps of furnace wall, furnace door, furnace top lid, etc.
Insulating materials of high temperature tubes
Excellent materials to produce module
Technical Index：
|
Classification Temperature
|
1050
|
1260
|
1400
|
|||||
|
Code
|
HLGX-112
|
HLGX-212
|
HLGX-312
|
HLGX-422
|
HLGX-612
|
HLGX-512
|
||
|
Shrinkage on Heating (%)
|
950℃×
24h≤-3
|
1050℃×
24h≤-3
|
1100℃×
24h≤-3
|
1200℃×
24h≤-3
|
1200℃×
24h≤-3
|
1280℃×
24h≤-3
|
||
|
Theoretical
Thermal Conductivity
(W/m·k)
（128kg/m3）
|
(200℃average)
|
0.045-0.060
|
0.052-0.070
|
|||||
|
(400℃average)
|
0.085-0.110
|
0.095-0.120
|
||||||
|
(600℃average)
|
0.152-0.20
|
0.164-0.210
|
||||||
|
Theoretical Density (kg/m3)
|
96/128
|
128
|
96/128
|
|||||
|
Specification (mm)
|
3600/7200/15000×610×10/20/25/30/40/50
|
|||||||
|
Tensile Strength（25mm thick）MPa
|
≥0.04
|
|||||||
|
Package
|
Plastic Bag Inside, Braided Bag Outside
|
|||||||
