FDA认证食品级耐腐蚀ED圈台湾进口din3869油塞 fluid connector seal
管接头密封件Fluid Connector Seal/pipe joint sealing，标准：美制AS568,英制BS1516,日标JISB2401,国际标准ISO3601,德国标准DIN3771,中国标准GB3452,美国标准AS568(900系列)材质：丁晴，氟胶；
|

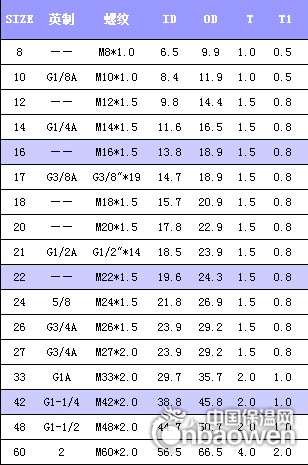

尺寸
|
螺纹(公制))
|
螺纹(英制)
|
ø内径
|
T
|
øOD
|
øID
|
H
|
|
10
|
M 10 x 1
|
G 1/8 A
|
8.4
|
1
|
12
|
8.3
|
0.7
|
|
12
|
M 12 x 1.5
|
-
|
9.8
|
1.5
|
14.5
|
9.7
|
1.2
|
|
14
|
M 14 x 1.5
|
G 1/4 A
|
11.6
|
1.5
|
16.6
|
11.2
|
1.2
|
|
16
|
M 16 x 1.5
|
-
|
13.8
|
1.5
|
19
|
13.7
|
1.2
|
|
17
|
-
|
G 3/8 A
|
14.7
|
1.5
|
19
|
14.7
|
1.2
|
|
18
|
M 18 x 1.5
|
-
|
15.7
|
1.5
|
21
|
15.7
|
1.2
|
|
20
|
M 20 x 1.5
|
-
|
17.8
|
1.5
|
23
|
17.7
|
1.2
|
|
21
|
-
|
G 1/2 A
|
18.5
|
1.5
|
24
|
18.4
|
1.2
|
|
22
|
M 22 x 1.5
|
-
|
19.6
|
1.5
|
24.6
|
19.7
|
1.2
|
|
27
|
M 26 x 1.5
|
G 3/4 A
|
23.9
|
1.5
|
29.3
|
23.8
|
1.2
|
|
27
|
M 27 x 2
|
G 3/4 A
|
23.9
|
2
|
29.3
|
23.8
|
1.2
|
|
33
|
M 33 x 2
|
G1A
|
29.7
|
2
|
36
|
29.6
|
1.6
|
|
42
|
M 42 x 2
|
G 1 1/4 A
|
38.8
|
2
|
46
|
38.6
|
1.6
|
|
48
|
M 48 x 2
|
G 1 1/2 A
|
44.7
|
2
|
51
|
44.5
|
1.6
|
