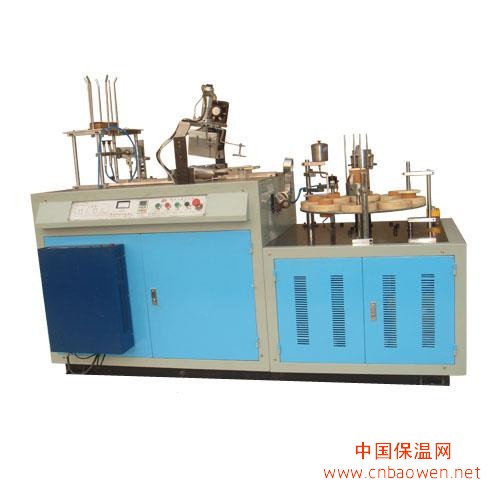

Model WT-30 Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second wall sleeve over the inner-cup/bowl(cup/bowl by paper cup/bowl machine).wear a sleeve around the paper cup/bowl.
It is the matching equipment of (ZB0A12) Paper Cup Machine &( ZW-A35),Paper bowl machine,which has the function as photo cell detectioin,failure alarm,counting etc.
It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve)feeding,sleeve cone-body sealing(by ultrasonic wave),water-glue sprying (spray glue inside the cone-sleeve),cup./bowl feeding (absorb cup into the cone-sleeve),inserting and bonding sleeve to the cup collecting with the function of photo electric detection,fault alarm,and count.
It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeves cups, bollow-sleeve cups etc. he sleeve-wrapped paper cups are popular  for hot drinks tea coffee, etc
全自动纸杯（纸碗）外贴机是紧跟市场需要而开发设计的，是zb-A12型纸杯机和ZW-A35型纸碗机的配套设备。具有自动送纸（印好的外套扇型片）超声波封合（形成外套层）喷胶（在外套内壁）、下碗/杯（已经做好的内层用纸杯、纸碗）外套与纸碗自动粘合以及光点检测、故障报警、计数等功能、工艺先进、设计合理、设备操作、维护方便。
全自动纸杯/碗外贴机的工作原理是在做好的纸杯、纸碗外再套上一层（隔热）、用于生产双层纸杯（咖啡果冻纸杯、瓦楞纸杯、香飘飘奶茶两层纸杯等）或两层纸碗（如：康师傅方便面碗、统一方便面碗等）
主要技术参数：Main technical parameters
纸杯规格：6-16盎司纸杯：20-50盎司纸碗（模具可调换）
paper cup size :6-160zcup/20-500z bowl (mold exchangeable)
纸质原料：PE淋膜纸，瓦楞纸以及其他类似淋膜纸（170-350）克
raw material:pe paper ,varnishing printed paper ,or other film coatde paper (can be sealed by ultrasonic) suitable paper weight:170-350gsm,(recommend 250-300gsm)
生产速度：40-50/分钟
rated productivity:40-50 paces/minute
电源要求：220V 50HZ 和380V 50HZ 都可使用
power source:220v 50hz/380v 50hz or other required
总功率：4KW
Total power:4kw
机器重量:1000kg
total weight :1000kg
外形尺寸：长*宽*高2200*1100*1600mm
package size (l*w*h) 2200*1100*1600mm
