四氟板滑动支座 四氟滑板式桥梁支座是于普通板式橡胶支座上粘接一层厚1.5-3mm的聚四氟乙烯板而成。除具有普通板式橡胶支座的竖向刚度与弹性变形，能承受垂直荷载及适应梁端转动外，因四氟乙烯与梁底不锈钢板间的低摩擦系数（μ≤0.06）可使桥梁上部构造的水平位移不受限制，跨度>3o米的大跨度桥梁、简支梁连续板桥和多跨连续梁桥可作活动支座使用；连续梁顶推、t型梁横移和大型设备滑移可作滑块使用。
Tetrafluoroplate sliding bearing tetrafluoroplaned bridge supports are bonded to a thick 1.5-3mm polytetrafluoroethylene plate on the ordinary plate rubber bearing. In addition to the vertical with normal rubber bearing stiffness and elastic deformation under vertical load and can adapt to the rotation of the outer end of the beam, because of low coefficient of friction between the steel plate and beam bottom tetrafluoroethylene (U = 0.06) the horizontal displacement of the upper structure of the bridge is not restricted, span >3o meters long span bridge, continuous beam bridge and multi span continuous beam bridge can be used as a movable support; continuous beam pushing and shifting of T beam and large equipment can use the slider slip.

各式橡胶支座产品划分
Various types of rubber bearing products

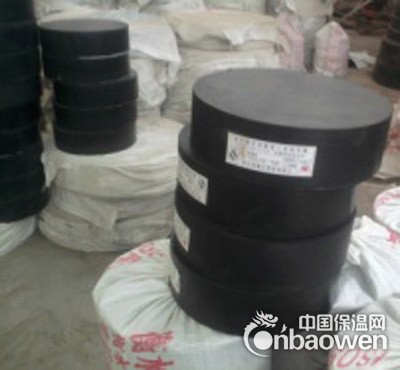

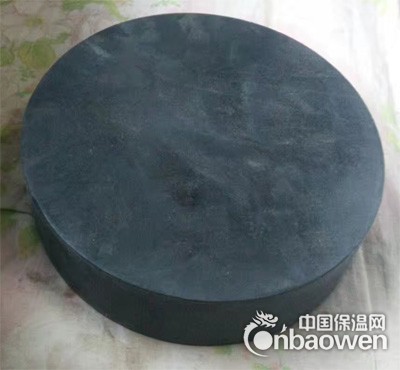

一、矩形（圆形）板式橡胶支座
One, rectangular (circular) plate rubber bearing
（一）性能：本产品由多层橡胶片与薄钢板镶嵌、粘合压制而发。有足够的竖向刚度以承压垂直荷载，能将 上部构造的反力可靠地传递给墩台，有良好的弹性，以适应梁端的转动；又有较大的剪切变形以满足上部 构造的水平位移。
(1) performance: This product is made up of multi layer rubber sheet and thin steel plate inlaid and glued and pressed. There are enough vertical stiffness to bearing vertical load, the upper structure of the reverse force can be reliably transferred to the pier, has good flexibility, in order to adapt to the rotation of the beam end; and to meet the horizontal displacement of superstructure of large shear deformation.
（二）特点：本产品在桥梁建筑、水电工程、房屋抗震设施上已广泛应用，与原用的钢支座相比，有构造 简单，安装方便；节约钢材，价格低廉；养护简便，易于更换等优点，且本品建筑高度低，对桥梁设计与降低造价有益；有良好的隔震作用，可减少活载与地震力对建筑物的冲击作用。
(two) features: This product has been widely used in bridge construction, hydropower projects, housing seismic facilities, compared with the original steel bearing, has simple structure, convenient installation; steel saving, low price; easy maintenance, easy replacement and other advantages, and the low building height, and reduce the cost of bridge design have good beneficial; isolation, live load and seismic force can reduce the impact on the building effect.
二、四氟乙烯滑板板式橡胶支座
Two, tetrafluoroethylene slide plate rubber bearing
（一）特点：本产品是于普通板式橡胶支座上粘接一层厚1.5-3mm的聚四氟乙烯板而成。除具有普通板式橡 胶支座的竖向刚度与弹性变形，能承受垂直荷载及适应梁端转动外，因四氟乙烯与梁底不锈钢板间的低摩擦系数（μ≤0.03）可使桥梁上部构造的水平位移不受限制。
(1) features: This product is made of a thick 1.5-3mm polytetrafluoroethylene plate on a common plate rubber bearing. In addition to the vertical with normal rubber bearing stiffness and elastic deformation under vertical load and can adapt to the rotation of the outer end of the beam, because of low coefficient of friction between the steel plate and beam bottom tetrafluoroethylene (U = 0.03) the horizontal displacement of bridge superstructure is not restricted.
聚四氟乙烯支座适用范围
The scope of application of polytetrafluoroethylene support
板式橡胶支座是公路中小型桥梁中比较常用的产品，它分为普通板式橡胶支座、四氟板式橡胶支座。对于普通型桥梁支座适用于跨度小于30m、位移量较小的桥梁.不同的平面形状适用于不同的桥跨结构,正交桥梁用矩形支座;曲线桥、斜交桥及圆柱墩桥用圆形支座.
The plate rubber bearing is the most commonly used product in the middle and small bridge of the highway. It is divided into the common plate type rubber bearing and the tetrafluoroplate type rubber bearing. For ordinary bridge bearings, it is suitable for bridges with span less than 30m and small displacement. Different plane shapes are suitable for different bridge span structures, rectangular supports for orthogonal bridges, circular supports for curved bridges, skew bridges and cylindrical piers.
对于四氟乙烯板式橡胶支座适用于大跨度、多跨连续、简支梁连续板等结构的大位移量桥梁.它还可用作连续梁顶推及T型梁横移中的滑块.矩形、圆形四氟板式橡胶支座的应用分别与矩形、圆形普通板式橡胶支座相同。
For PTFE laminated rubber bearing is suitable for large span and multi span continuous beam, continuous plate structure of the large displacement bridge. It is also used as a continuous beam and T beam traversing the top slider in the rectangular or circular. Application of PTFE laminated rubber bearings with rectangular or circular ordinary laminated rubber bearing the same.
产品选型
Product selection
a：查看板式橡胶支座的安装施工图纸，主要注意板式橡胶支座的规格型号、高度、承载力等主要技术参数。四氟滑板橡胶支座还要注意预埋钢板的尺寸和安装位置及方向； b：选用板式橡胶支座时,支座的最大承载力应与桥梁支点反力相吻合,其容许偏差范围宜为±10%；
A: check the installation drawings of the plate rubber bearing, and pay attention to the main technical parameters, such as the size, height and bearing capacity of the plate rubber bearing. The size and installation location and direction of the embedded steel plate should be paid attention to. The maximum bearing capacity of the support shall be consistent with the counterforce of the bridge fulcrum, and the allowable deviation range should be + 10%. B
c： 对于弯、坡、斜、宽桥梁，宜选用圆形板式橡胶支座。公路桥梁工程不许使用带球冠或坡形的橡胶支座；
C: circular plate rubber bearing should be used for curved, sloping, oblique and wide bridges. The highway bridge engineering allowed the use of rubber bearings with spherical or slope shape;
d：当桥梁纵坡坡度不大于1%时，板式橡胶支座可直接设置于墩台上，但应考虑纵坡影响所需要的厚度。当纵坡坡度大于1%时，应采用预埋钢板（加楔形钢板）、混凝土垫块（带坡度的垫石）或其他措施将梁底调平，保证支座平置。板式橡胶支座应按JTG D62的有关规定验算并在验算满足规定要求后方可使用。
D: when the bridge longitudinal slope is not greater than 1%, the laminated rubber bearing can be directly arranged on the pier, but should consider the influence of the required thickness of longitudinal slope. When the longitudinal gradient is greater than 1%, we should use pre embedded steel plate (plus wedge steel plate), concrete cushion block (with a slope pad stone) or other measures to adjust the bottom of the beam to ensure the support's flat. The plate rubber bearing shall be checked in accordance with the relevant regulations of JTG D62 and can be used after the checking calculation satisfies the requirements.
e：GJZF4、GYZF4型四氟滑板橡胶支座应水平安装。并应设置上下钢板，四氟滑板与不锈钢板间应该涂放5201-2硅脂润滑油，安装后一定要设置防尘罩；支座的四氟滑板不得设置在支座底面，与四氟滑板接触的不锈钢板也不能设置在桥梁墩、台垫石上。
E:GJZF4 and GYZF4 type tetrafluoroskateboard rubber bearing should be installed horizontally. And should be set on the steel plate, stainless steel plate and PTFE slide should apply 5201-2 grease lubricating oil, after installation must be set dustproof; PTFE sliding bearings should be set up in the bottom surface of the supporting seat, stainless steel plate contact with PTFE slide also cannot be set in the bridge pier and abutment pad stone.
